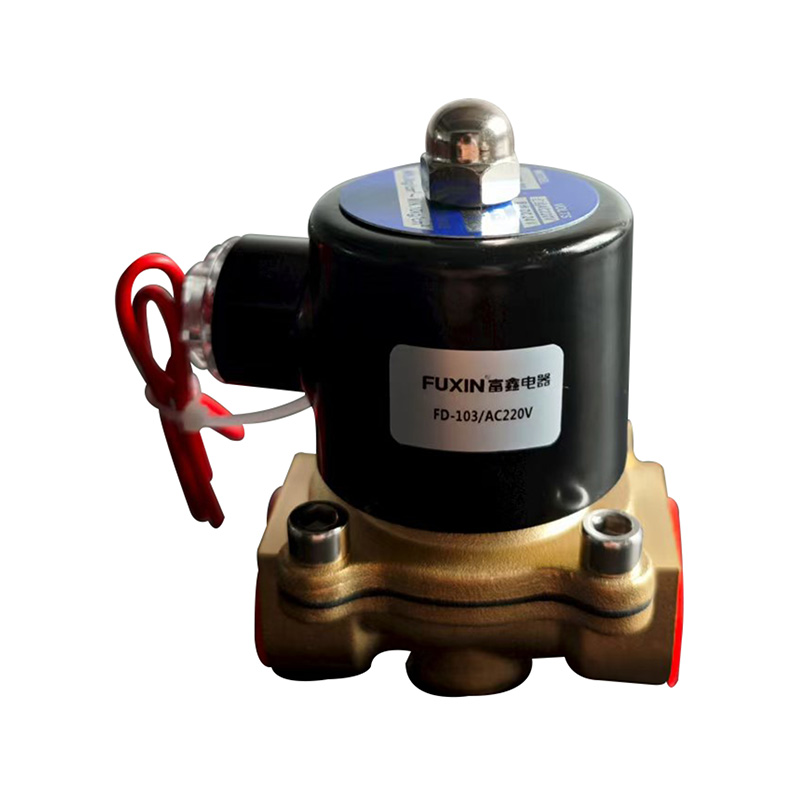

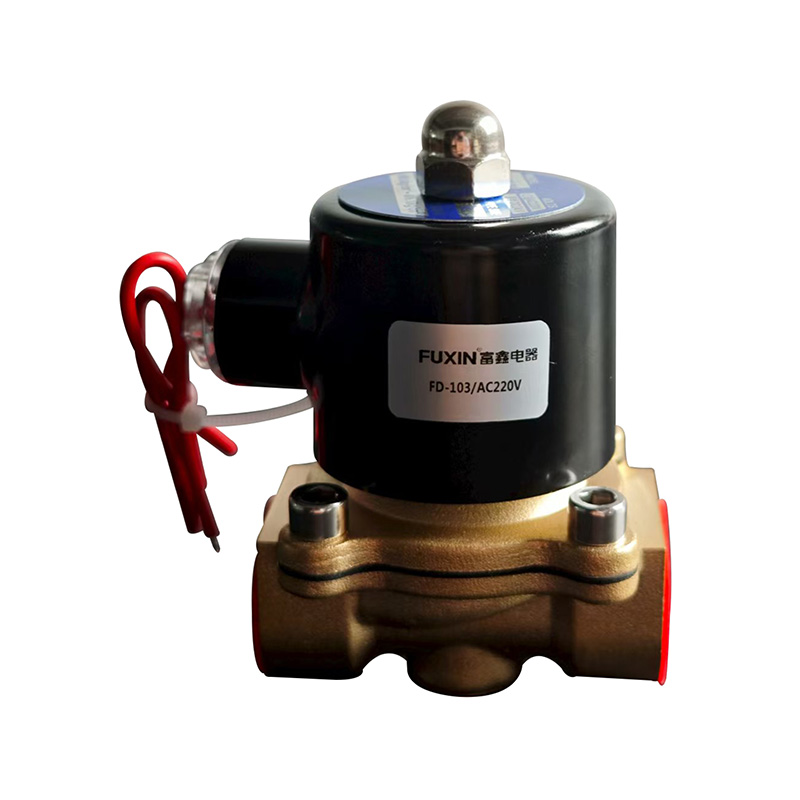

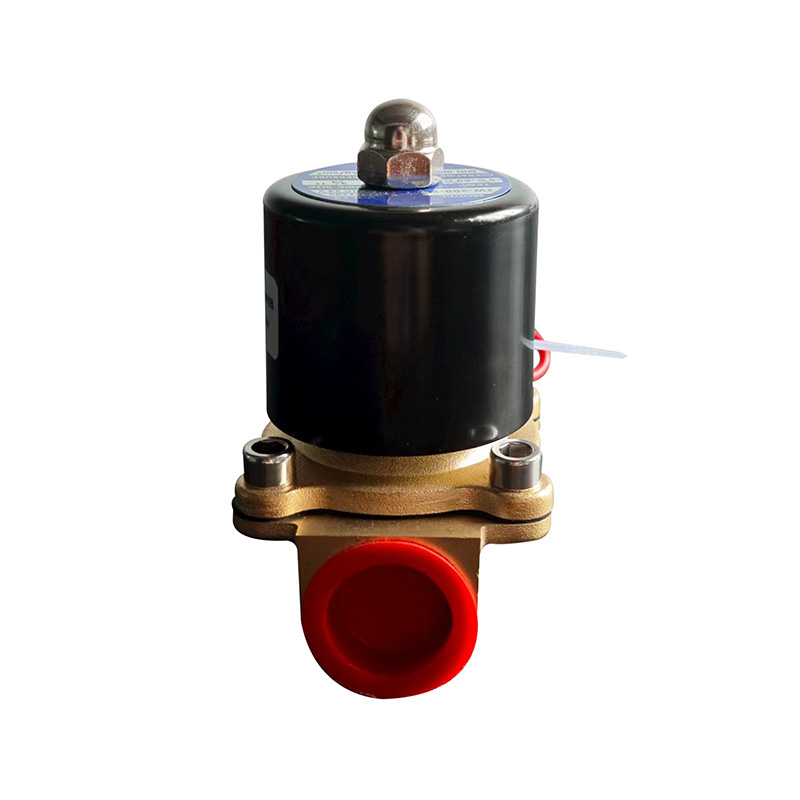

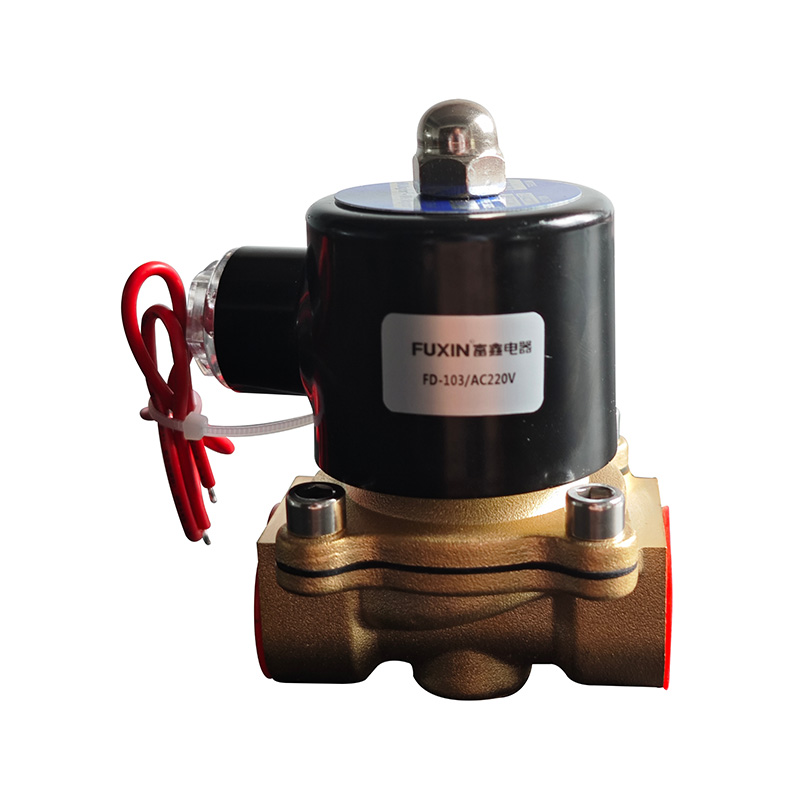

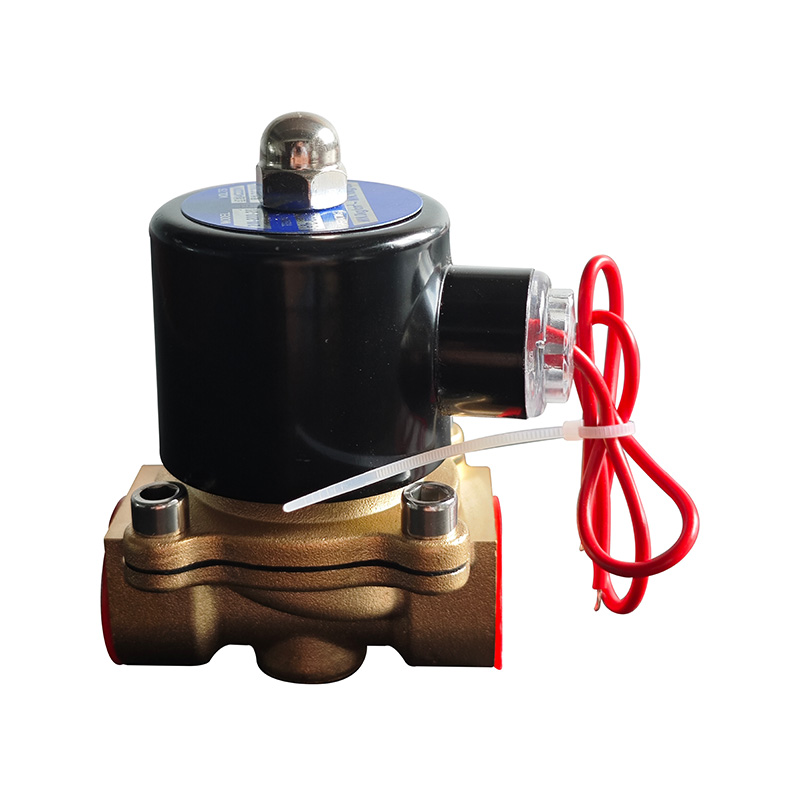

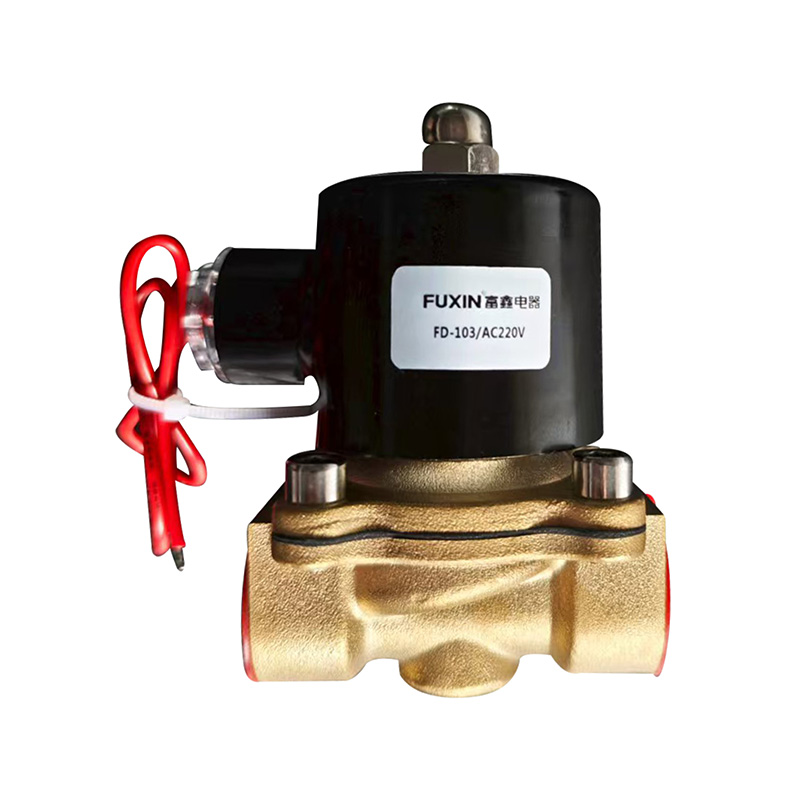

FD-103 Brass Engineering Solenoid Valve

The FD-103 Brass Engineering Solenoid Valve is a versatile flow control component designed for reliable performance in a wide range of applications. Constructed with durable brass, it is suitable for use with water, gas, and oil media, making it adaptable to both residential and industrial systems. Its compact design and standardized G1" threaded connections ensure easy installation and compatibility with common piping systems.

Inquiry Zhejiang Fuxin Electrical Technology Co., Ltd.
  • Description
  • Parameter List

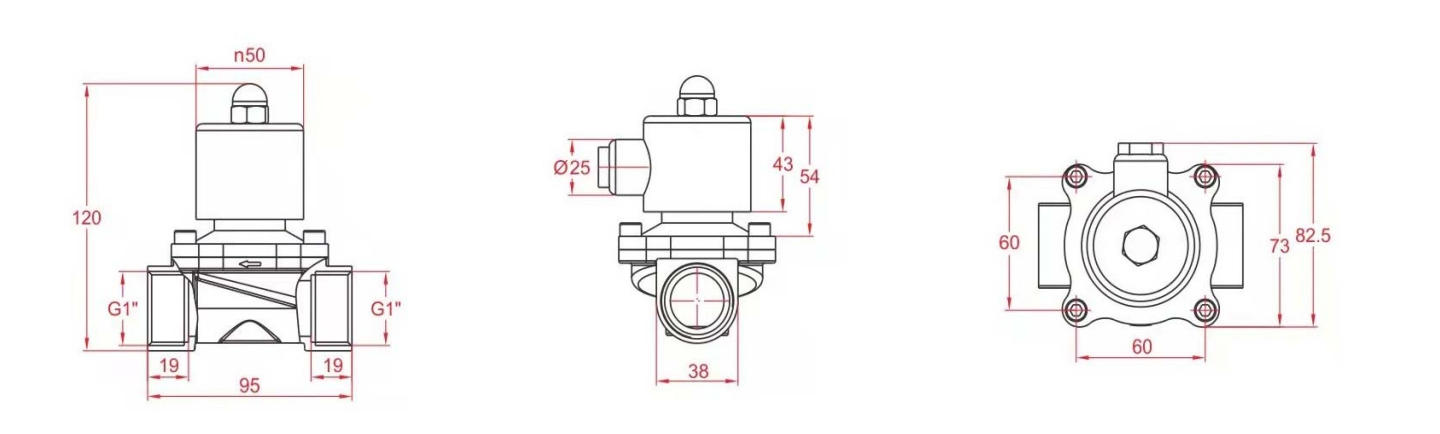

  • Outline Drawing
  • Accessories
  • Ordering Instructions

Operating at a rated voltage of DC 6V, the valve functions within a working range of DC 4.5V to DC 6.6V. It features a direct current pulse type switch with a pulse width of 10ms, enabling responsive control with an opening time of less than 0.3 seconds and a closing time within 1.0 second. With a coil resistance of 25±1Ω at room temperature and a working pressure range between 0.05MPa and 0.8MPa, the FD-103 offers stable and consistent operation under typical working conditions.

The valve is suitable for medium temperatures from 1℃ to 75℃ and can be used in environments with humidity levels of 35%–90% RH without condensation. It supports flow rates ranging from 5 L/min at 0.05MPa to 32 L/min at 0.8MPa, ensuring efficient performance across varying pressure levels. Its allowable pressure is below 2.5MPa, offering a dependable balance of safety and functionality.

With its brass construction, adaptable installation direction, and wide application range, the FD-103 Brass Engineering Solenoid Valve provides a practical solution for systems requiring stable and controlled media flow.
