Sensor Faucet Solenoid Valves

Home / Products / Sanitary Ware Solenoid Valves / Sensor Faucet Solenoid Valves / Latching Type Water Solenoid Valve For Sensor Faucet

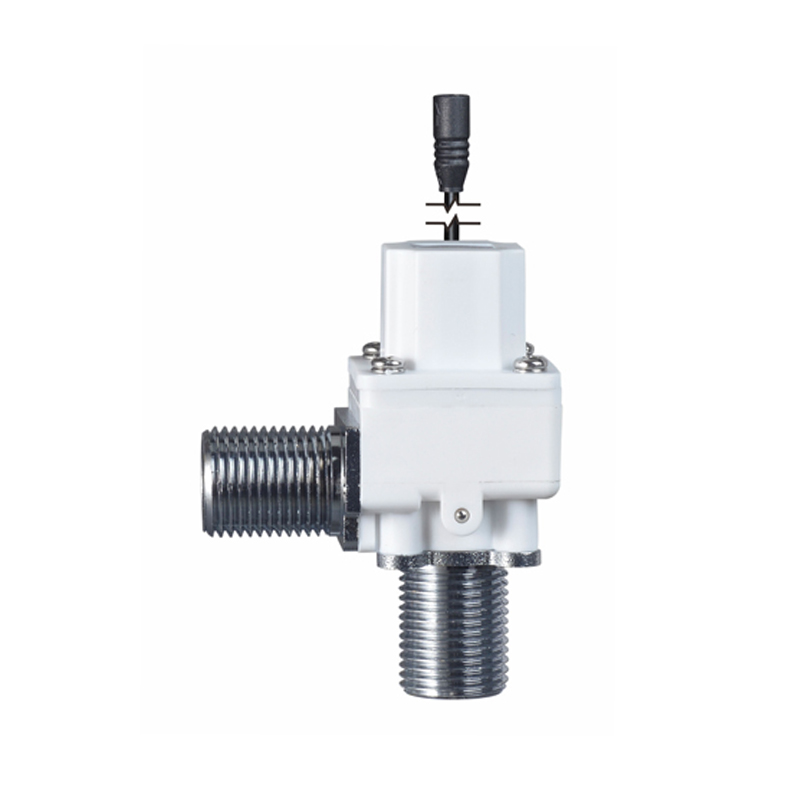

  • White plastic and metallic L-shaped pulse valve featuring dual male threaded ports.

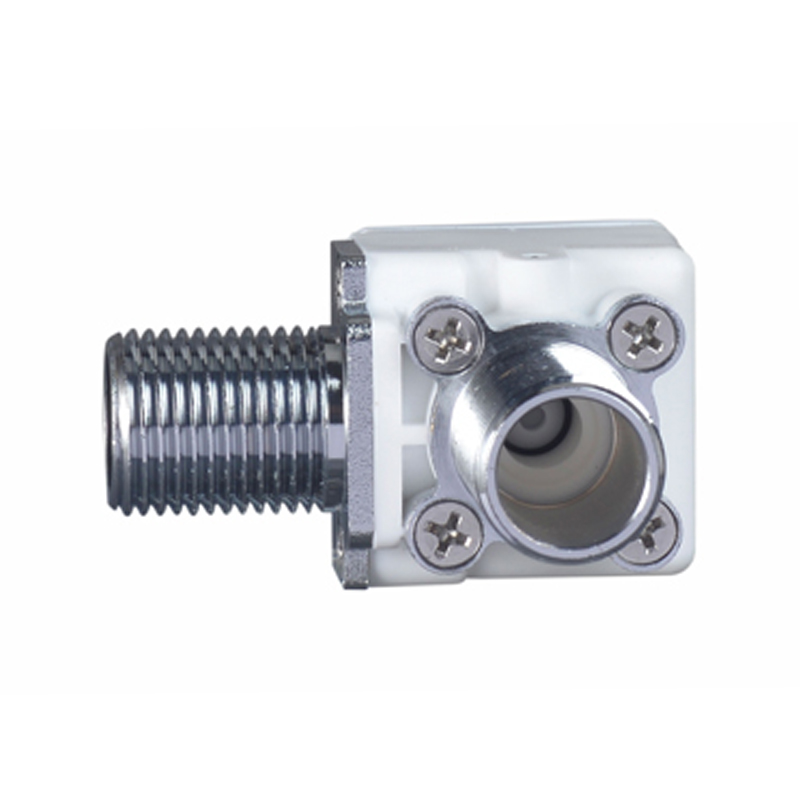

  • Right-angle water valve combining a white top casing with a bright metallic base.

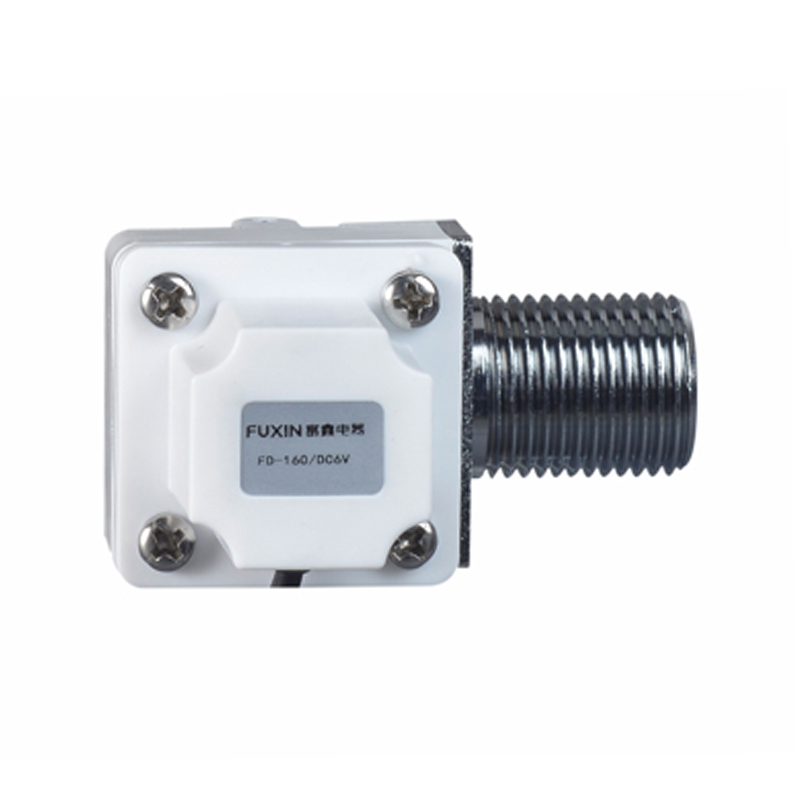

  • Compact automatic faucet valve assembly with secure screw fixing and top wire output.
  • Durable L-shaped water control valve designed with an unplated metallic inlet port.

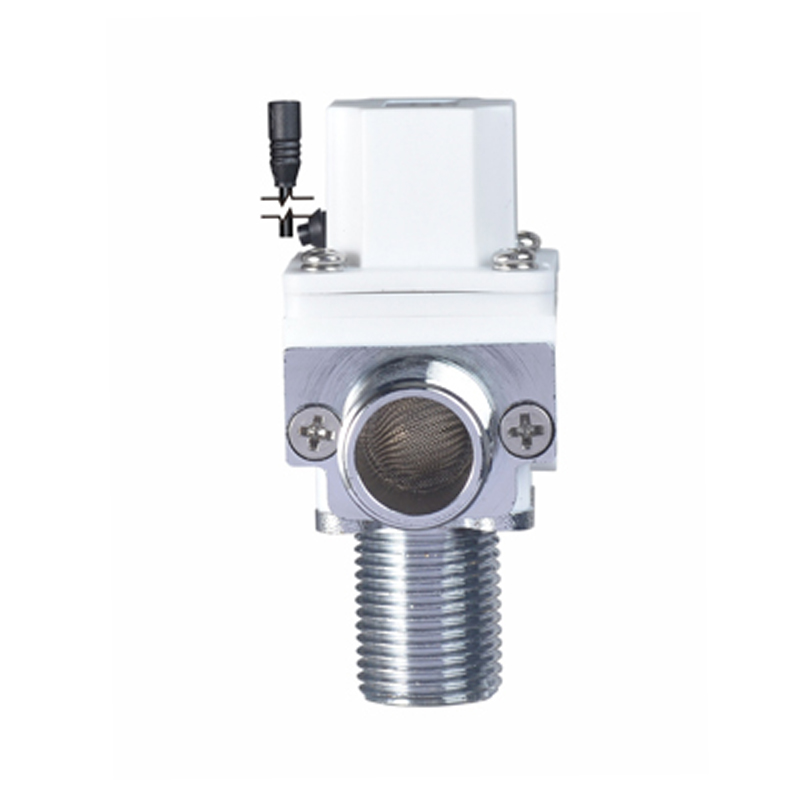

  • Sensor faucet pulse valve with four top screws and parallel threaded metal pipes.
  • White plastic and metallic L-shaped pulse valve featuring dual male threaded ports.
  • Latching Type Water Solenoid Valve For Sensor Faucet
  • Right-angle water valve combining a white top casing with a bright metallic base.
  • Compact automatic faucet valve assembly with secure screw fixing and top wire output.
  • Durable L-shaped water control valve designed with an unplated metallic inlet port.
  • Sensor faucet pulse valve with four top screws and parallel threaded metal pipes.
  • White plastic and metallic L-shaped pulse valve featuring dual male threaded ports.

Latching Type Water Solenoid Valve For Sensor Faucet

The Latching Type Water Solenoid Valve is designed for use in sensor-controlled systems for sanitary ware such as hand washers.  The valve is quite flexible since it can run on both pulse signals and continuous modes depending on your setup. The pulse mechanism itself is built to last, ticking along for up to 1 million cycles while keeping power consumption low, needing only a quick 25-millisecond pulse width to open or close.It carries a high waterproof rating up to IP67 and features a built-in self-cleaning function, which gives it decent resistance against stray grit and water impurities so it won't choke up early. Installing it is pretty straightforward since it accommodates all sorts of structural layouts, letting you tweak the inlet and outlet lengths to match your plumbing needs. You can even get the valve body cast from special corrosion-resistant materials, making it a solid fit if your lines are carrying seawater, heavy concentrations of acids and alkalis, or oily water mixes.

Inquiry Zhejiang Fuxin Electrical Technology Co., Ltd.
  • Description
  • Parameter List

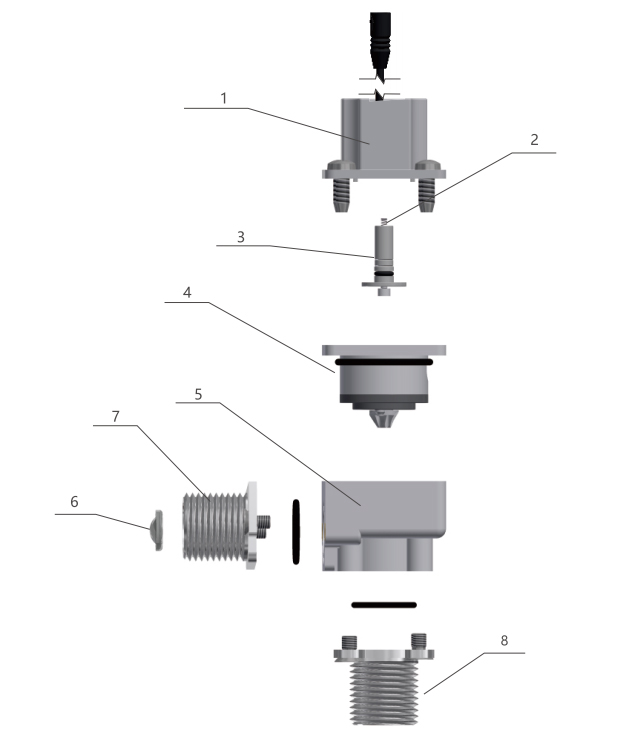

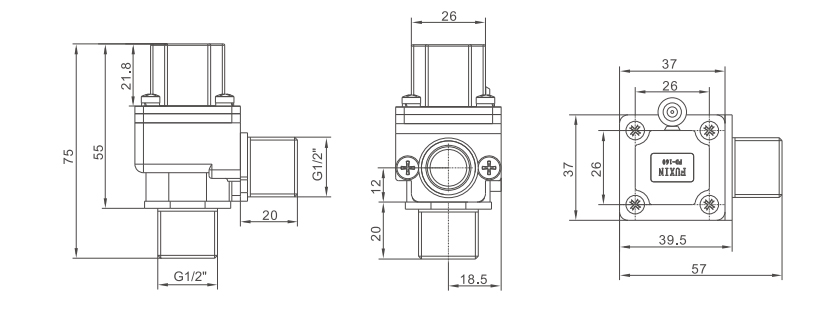

  • Outline Drawing
  • Accessories
  • Ordering Instructions
Product Introduction

We are thrilled to introduce our innovation in plumbing technology – the Latching Type Water Solenoid Valve for Sensor Faucet.  We put this assembly together to clear up the usual headaches with water efficiency and make your system easier to manage, so it handles daily fluid flow without a hitch—whether you are dropping it into a home kitchen faucet or a busy commercial restroom row.

Key Features

  1. Shockproof Design: Our Latching Type Water Solenoid Valve features a beefed-up shockproof setup, which means you get reliable operation even when lines vibrate or things get a bit rough on the job site. This extra durability helps the mechanism handle a wide mix of daily installation setups without throwing a fit.
  2. Water Hammer Resistance: Nobody wants to deal with that annoying, loud banging noise echoing through the pipes. Our solenoid valve comes with built-in anti-water hammer technology, keeping the whole cutoff operation smooth and quiet so you can completely skip buying extra dampening gear or heavy pulse pads.
  3. Corrosion Resistance: Built to handle harsh working conditions, the valve housing does a great job of shrugging off everyday exposure to acids, alkalis, and salts. This tough construction stops the internal passages from rotting out early, keeping the unit dependable even in pretty corrosive setups.
  4. AC/DC6V Compatibility: To make your life a lot easier, this valve plays nice with both AC and DC power supplies running on a standard 6V rating. This flexible layout lets it slide right into all kinds of sensor faucet circuit boards without giving your team a massive wiring headache on the bench.
  5. IP67 Rating: Designed to keep working fine in damp or messy environments, the valve enclosure carries a solid IP67 rating. This just means it keeps fine dust out and handles accidental water immersion just fine, whether you bolt it down indoors or leave it exposed out in the elements.

This Latching Type Water Solenoid Valve is a highly practical step forward for sensor faucet hardware. By combining a shockproof frame, water hammer protection, corrosion resistance, 6V AC/DC compatibility, and an IP67 rating, it delivers steady performance wherever you drop it. It's a completely dependable choice if you need to tackle plumbing jobs with proper accuracy and less fuss. If you are looking to update your sensor faucet line, this layout gets the job done cleanly.

Leave a Reply

Your email address will not be published. Required fields are marked *

Zhejiang Fuxin Electrical Technology Co., Ltd.

We were founded in 2001. Fuxin was mainly engaged in producing energy-saving type bi-stable pulse solenoid valves and accessories. The products are widely used in intelligent toilet automatic flushing control, induction sanitary ware, solar automatic water supply control, household appliances, washing equipment, food processing, garden irrigation, intelligent water meters engineering water control systems, etc.

Since its founding, the company always adhered to the concept of "independent research and development, active innovation", to provide users with high-quality solenoid valve proposals and value-added services that meet customer demands to solve the technical problems encountered by the users in the use of solenoid valves. As the company grew, Fuxin invested 150 million Yuan in 2009 to build an Industrial Park covering an area of 18000㎡ in Jinlong Industrial Park of Tongliang District, Chongqing and registered “Chongqing RongHuan Electric Appliance Co., Ltd.” Specialized in research and development, production, sales, and goods import and export trade of high and low voltage electrical appliances, measuring instruments, instruments, sanitary ware, software and electric components, and pipe valves.

As a solenoid valve manufacturing enterprise, Fuxin always adheres to the technical concept of prominent performance and always takes providing the solutions for the customers as its own duty. Now the company has a laboratory, professional research and development teams composed of engineers and technicians, and a set of strict production and other links are all provided by professional designers for control and check. In the production process, the advanced testing equipment makes each Fuxin product have diamond-like quality, and solenoid valves have a service life longer than 1.2 million times.

In the 19 years since its establishment, the company has successfully passed IS09001 international quality system certification, and its products have passed CE, ROHS, French ACS, international electrical certification CB, German KTW, U.K. W270, and U.S. NSF certification. The annual sales volume has reached more than 4 million. Many well-known sanitary ware companies such as Fujian Jomoo, Tangshan Huida, Xiamen Jianlin, etc. have reached strategic partnerships and exported to more than 20 countries and regions including the United States, Canada, Germany, Brazil, Russia, Argentina, Singapore, Hong Kong, and Taiwan.

Now the Fuxin brand has become the choice of many sanitary ware manufacturers at home and abroad. Today, Fuxin is growing stronger and stronger, and has now developed into two main bodies, "Yueqing Fuxin Electrical Appliance Factory" and "Chongqing Ronghuan Electrical Appliance Co., Ltd.". It has injection workshops, machining workshops, stamping workshops, polishing workshops, coil production lines, solenoid valve production lines, and finished product testing workshops. It has continuously invested heavily in the introduction of CNC machining centers, large precision punches, vertical turntable injection molding machines, automatic coating machines, Automatic screw locking machines, iron core automatic screening machines, depth measuring instruments, automatic dispensing machines, advanced assembly line, and other equipment. To ensure product quality and improve product self-testing capabilities, the company has established solenoid valves, smart gas meters, smart water meter laboratories, established a product testing center, and introduced advanced product performance testing machines, product life testing machines, imported oscilloscope instruments, high and low-temperature Test equipment, salt spray test equipment, computer high magnification magnifying glass, Product testing is at a high level in the industry.
