Sensor Urinal Solenoid Valves

Home / Products / Sanitary Ware Solenoid Valves / Sensor Urinal Solenoid Valves / Full Brass Sensor Urinal Flush Water Solenoid Valve
  • Heavy-duty solid brass urinal flush valve equipped with an electric solenoid coil.
  • Brass water valve featuring a top black electric coil with dual metallic prongs.
  • Heavy-duty solid brass urinal flush valve equipped with an electric solenoid coil.
  • Integrated brass automatic flush valve designed with prominent male threaded pipes.
  • Brass valve housing assembling a top slotted tuning bolt and a hex metal cap.
  • Unplated matte gold brass automatic fluid controller with four securing screws.

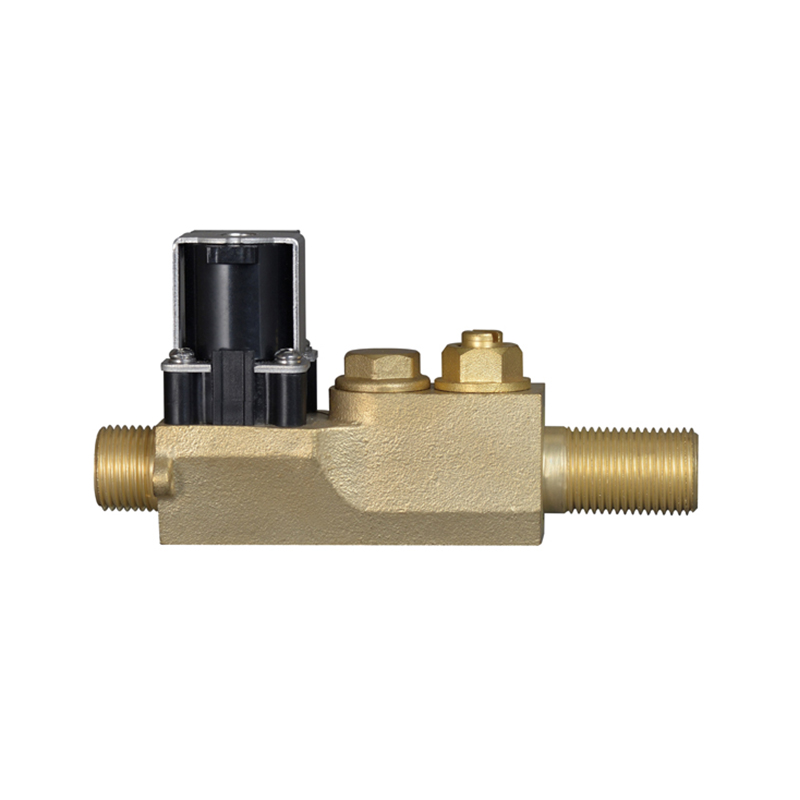

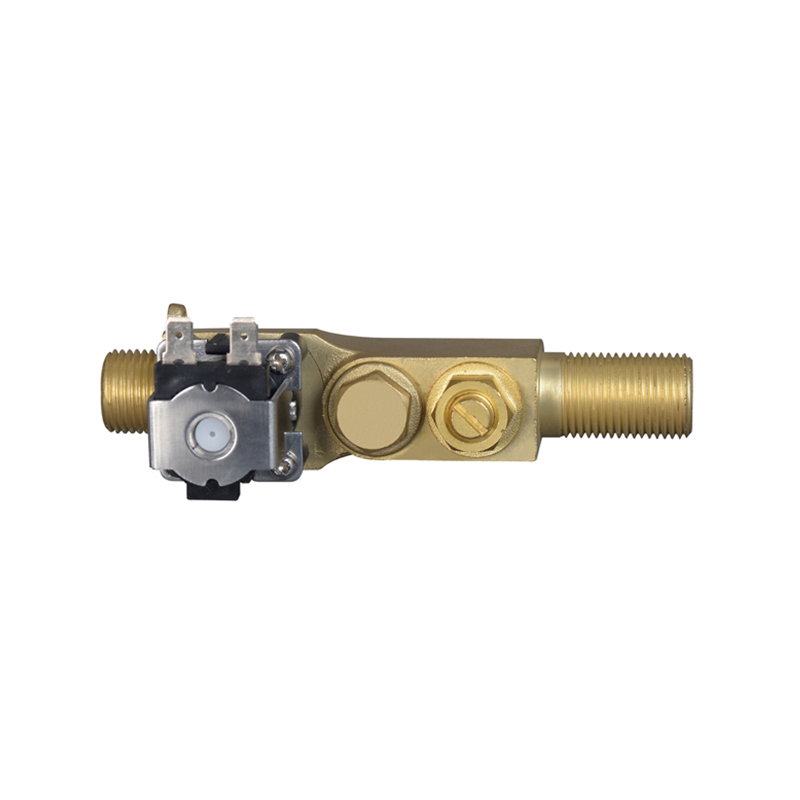

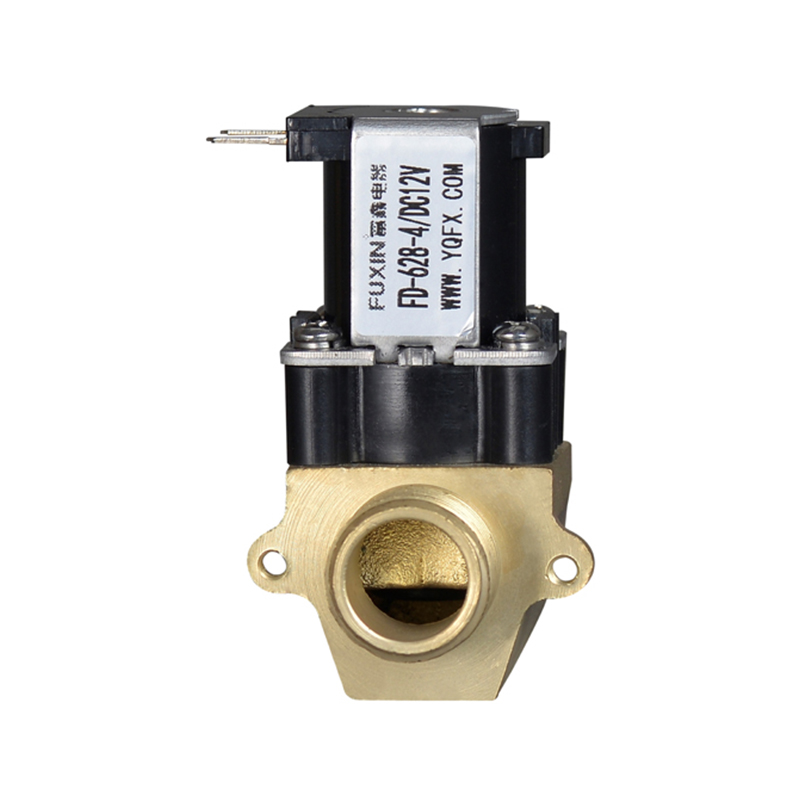

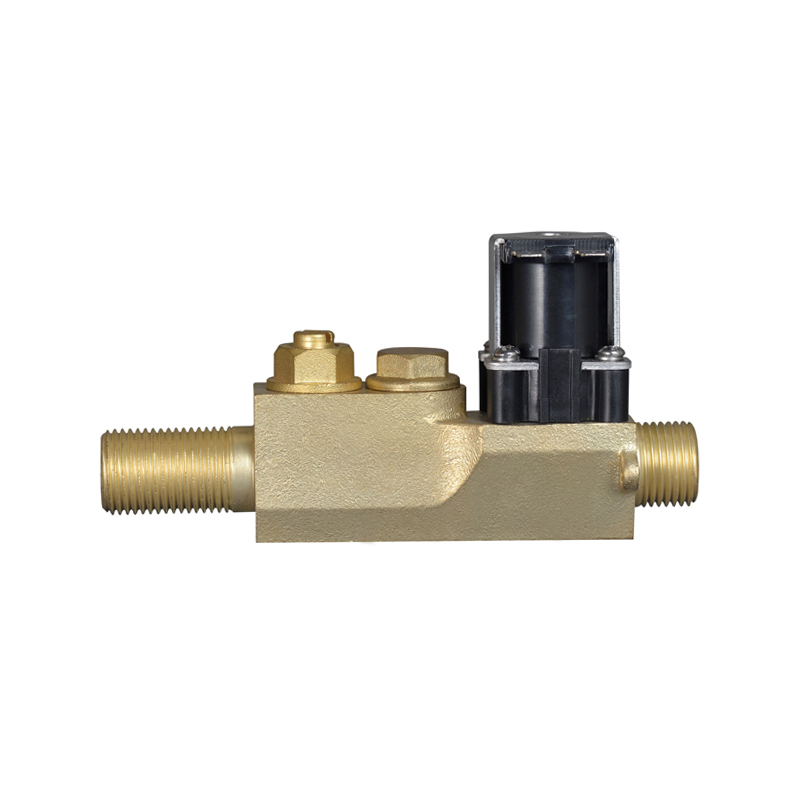

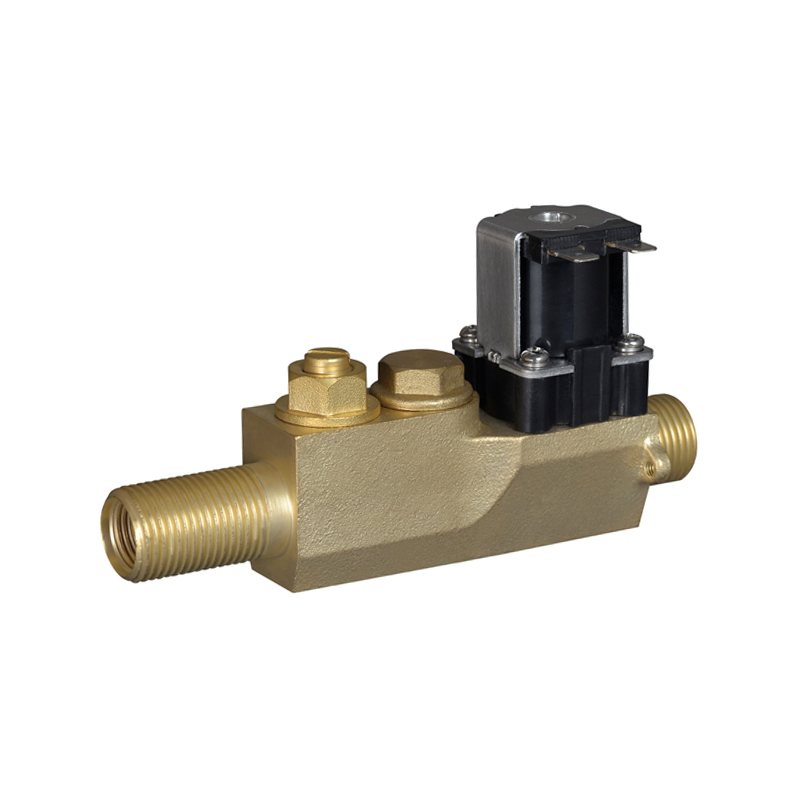

  • Full Brass Sensor Urinal Flush Water Solenoid Valve
  • Brass water valve featuring a top black electric coil with dual metallic prongs.
  • Heavy-duty solid brass urinal flush valve equipped with an electric solenoid coil.
  • Integrated brass automatic flush valve designed with prominent male threaded pipes.
  • Brass valve housing assembling a top slotted tuning bolt and a hex metal cap.
  • Unplated matte gold brass automatic fluid controller with four securing screws.

Full Brass Sensor Urinal Flush Water Solenoid Valve

The Battery Operated Sensor Urinal Flush Solenoid Valve is designed for use in sensor-controlled sanitary systems. The valve is pretty flexible since it plays nice with both pulse signals and continuous modes depending on how your controller is configured. The pulse mechanism itself is a tough little workhorse, clicking along for up to 1.2 million cycles while barely drawing any power—it only needs a quick 25-millisecond pulse width to snap open or shut, and it carries a solid IP67 waterproof rating.It also packs a handy self-cleaning setup and decent resistance against stray water grit so it won't choke up early on the job. Mounting it is a breeze since you can fix it directly into the ceramic holes using its rubber seal, which completely cuts down on heavy wall-chasing work and keeps the whole installation straightforward. Going with this concealed mounting style trims back a lot of the usual job site alignment difficulties on your list. The integrated design of flow adjustment and filtration device greatly enhances product longevity.

Inquiry Zhejiang Fuxin Electrical Technology Co., Ltd.
  • Description
  • Parameter List

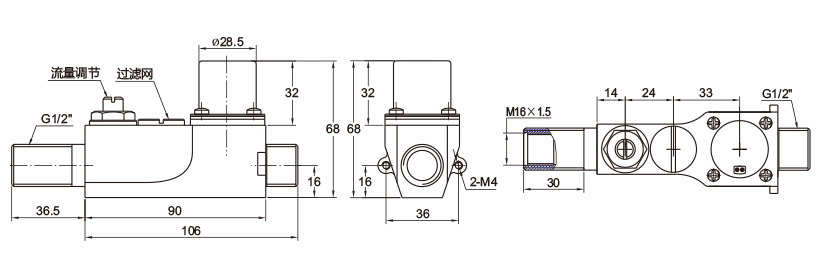

  • Outline Drawing
  • Accessories
  • Ordering Instructions

Key Features

  1. Tough Material Build: Machined straight out of heavy, solid brass stock, this solenoid valve handles everyday restroom bumps and holds up nicely even in pretty demanding, high-use commercial layouts.
  2. Smart Sensor Hookup: Built to pair cleanly with advanced sensor electronics, our valve opens and closes with solid accuracy, making the whole flushing cycle completely hands-free while keeping water usage in check.
  3. Smart Fluid Management: By governing the water flow precisely during every flush, our solenoid valve cuts down on random water waste, which goes a long way in trimming your utility bills and keeping your facility running efficiently.
  4. Un-fussy Installation: We designed this valve layout to completely skip the usual plumbing headaches on site, straightening out the setup process so your maintenance crew can bolt it down and save on labor costs.
  5. Adapts to Different Fixtures: This valve plays nice with a wide mix of common urinal setups, giving you plenty of breathing room and flexibility whether you are retrofitting older public restrooms or plumbing new institutional facilities.
  6. Low Power Draw:The way the internal coil is wound means this solenoid barely draws any juice when it clicks open or shut. That's a huge plus if you are running it off a backup battery box, since it keeps you from constantly scrambling to swap out dead cells and helps keep your upkeep costs down.
  7. Meets the Codes:We made sure this valve hardware ticks all the boxes for standard plumbing codes and industry regulations. You won't have to stress about failing your safety inspections or dealing with random breakdown issues once the unit is boxed up inside the wall.

To wrap things up, our Full Brass Sensor Urinal Flush Water Solenoid Valve is just a tough, sensible, and highly practical component built for anyone upgrading modern public restrooms. By combining solid brass castings, sharp automated compatibility, and a straightforward layout, it gives you a highly reliable answer for managing your fluid lines shift after shift. Whether you are trying to tighten up your water consumption, make things easier for visitors, or trim down your building's daily maintenance costs, this valve is a really solid call.
