Sensor Urinal Solenoid Valves

Home / Products / Sanitary Ware Solenoid Valves / Sensor Urinal Solenoid Valves / Full Brass 1/2 Inch Sensor Urinal Solenoid Valve
  • DC 12V Fuxin automatic urinal flush valve with a durable solid brass body.
  • Brass water control valve featuring a top metallic head and a black wire plug.
  • Brass fluid valve built with a male threaded inlet and a hex-socket connection.
  • Smart urinal flush valve assembling a center slotted adjusting screw on top.
  • DC 12V Fuxin automatic urinal flush valve with a durable solid brass body.
  • Full Brass 1/2 Inch Sensor Urinal Solenoid Valve
  • Brass water control valve featuring a top metallic head and a black wire plug.
  • Brass fluid valve built with a male threaded inlet and a hex-socket connection.
  • Smart urinal flush valve assembling a center slotted adjusting screw on top.
  • DC 12V Fuxin automatic urinal flush valve with a durable solid brass body.

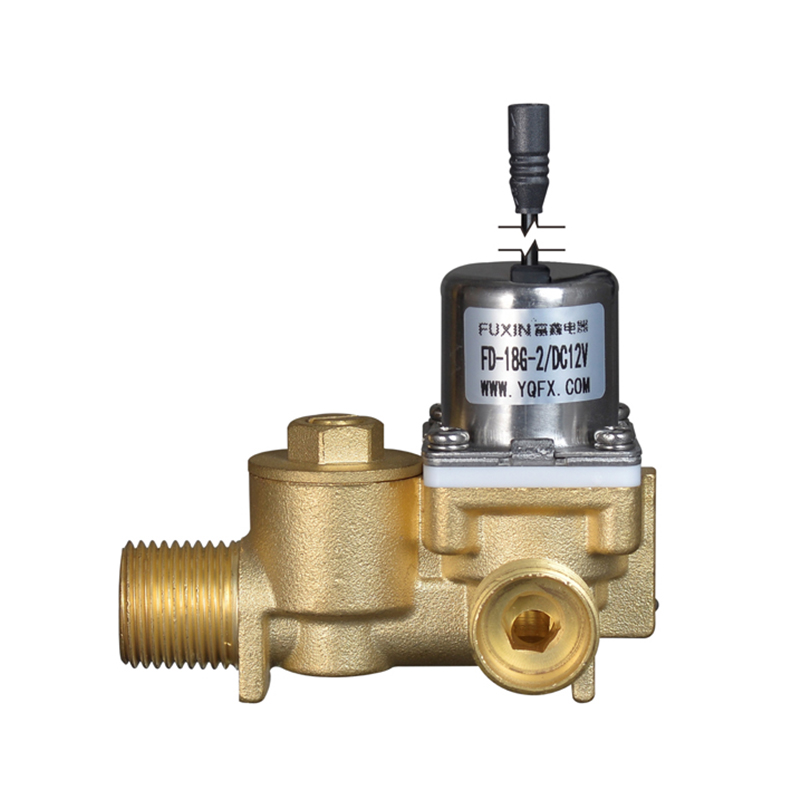

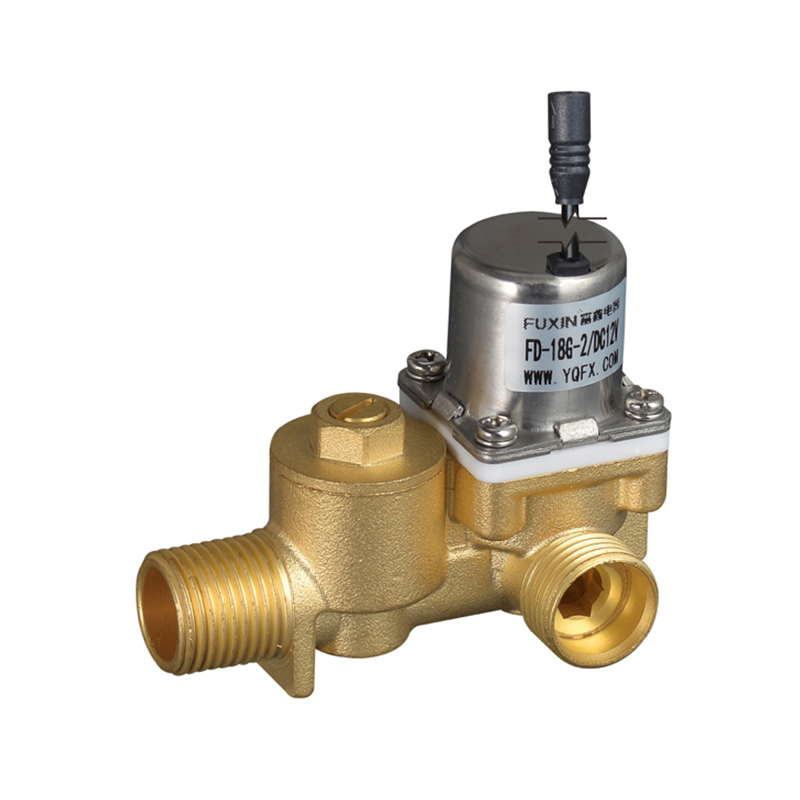

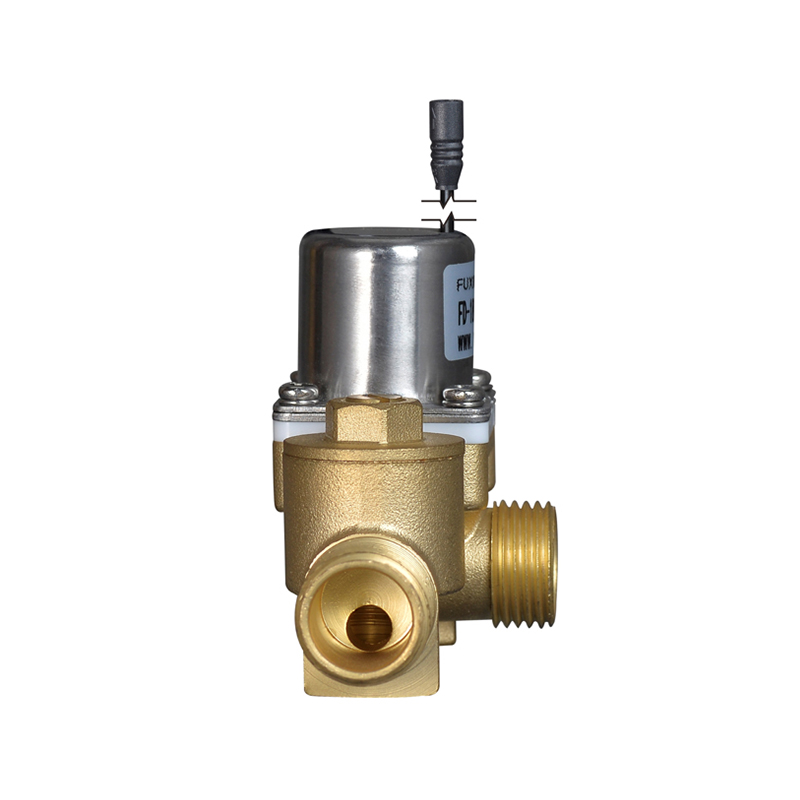

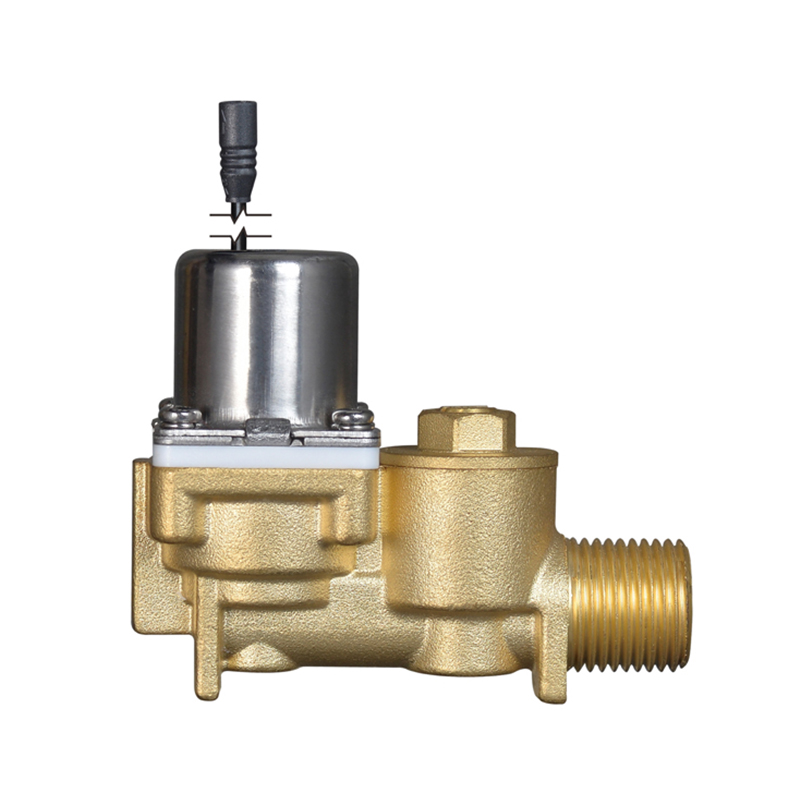

Full Brass 1/2 Inch Sensor Urinal Solenoid Valve

We machine the main body out of solid brass H58, forging it and using CNC machining centers for precision. It combines flow regulation, filtering, and cleaning with tough thread connection strength. It hits an IP67 waterproof rating, handles pressures up to 3.5Mpa on the solenoid side, and lasts up to 1.2 million cycles.This Full Brass 1/2 Inch Sensor Urinal Solenoid Valve is built for sensor-controlled restroom setups. The valve runs on both pulse signals and continuous modes. The pulse setup lasts up to 1.2 million cycles, drawing low power with just a 25-millisecond pulse width operation, and carries an IP67 waterproof rating. It also includes self-cleaning functions and decent resistance against water impurities. You fix the valve directly with rubber into the ceramic holes, which cuts out heavy wall installation engineering and simplifies setup. The integrated design of flow adjustment and filtration device greatly enhances product longevity.

Inquiry Zhejiang Fuxin Electrical Technology Co., Ltd.
  • Description
  • Parameter List

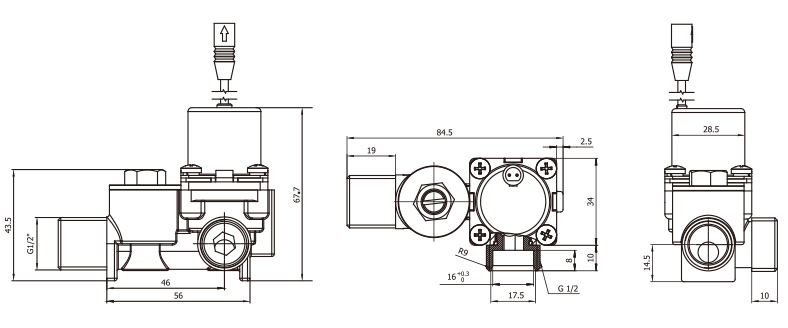

  • Outline Drawing
  • Accessories
  • Ordering Instructions

Key Features

  1. Full Brass Construction:To be honest, the main reason this valve holds up so well comes down to its heavy, solid brass build. We machined it tough so it can take the typical knocks and bumps of a high-traffic restroom without cracking or leaking. That thick metal casing is pretty great at shrugging off rust over time, making it a practical choice for long-term use across different locations.
  2. 1/2 Inch Size:Sized with a standard 1/2-inch fitting, this valve drops right into regular plumbing networks without giving your installation crew a massive piping headache. Because it uses a universal size, it plays nice with all kinds of urinal configurations, which really strips out the usual hassle when you're trying to retrofit older fixtures on site.
  3. Sensor Technology:We set this up to link cleanly with modern sensor electronics, allowing for completely hands-free flushing to bump up hygiene levels in public facilities. The sensor handles the user detection and kicks off the flush cycle entirely on its own, cutting out the need for direct handle contact and lowering the risk of spreading bugs around.
  4. Switch Mode: DC Pulse (Latching Type):The mechanism operates on a DC pulse setup, specifically using a latching type valve. This clever switching layout gives you steady, precise control over the fluid movement, helping you save on water bills while keeping the battery draw remarkably low. The latching configuration adds a solid layer of stability, ensuring it keeps performing consistently over long-term use.
  5. Wide Application:This solenoid valve handles daily shift work just fine whether you drop it into commercial office restrooms, public hubs, busy hotels, or standard residential buildings. Its flexible layout makes it a solid choice for all sorts of different settings where you just need a dependable, un-fussy urinal setup that gets the job done cleanly.

Our Full Brass 1/2 Inch Sensor Urinal Solenoid Valve brings together solid material choices, daily utility, and steady performance for modern restroom hardware. By combining a tough brass frame, smart switching mechanics, and a resource-saving layout, it turns out dependable results and real convenience wherever you install it. Dropping this valve block into your current line is a smart way to keep your facilities running efficiently and your stations fresh shift after shift.
